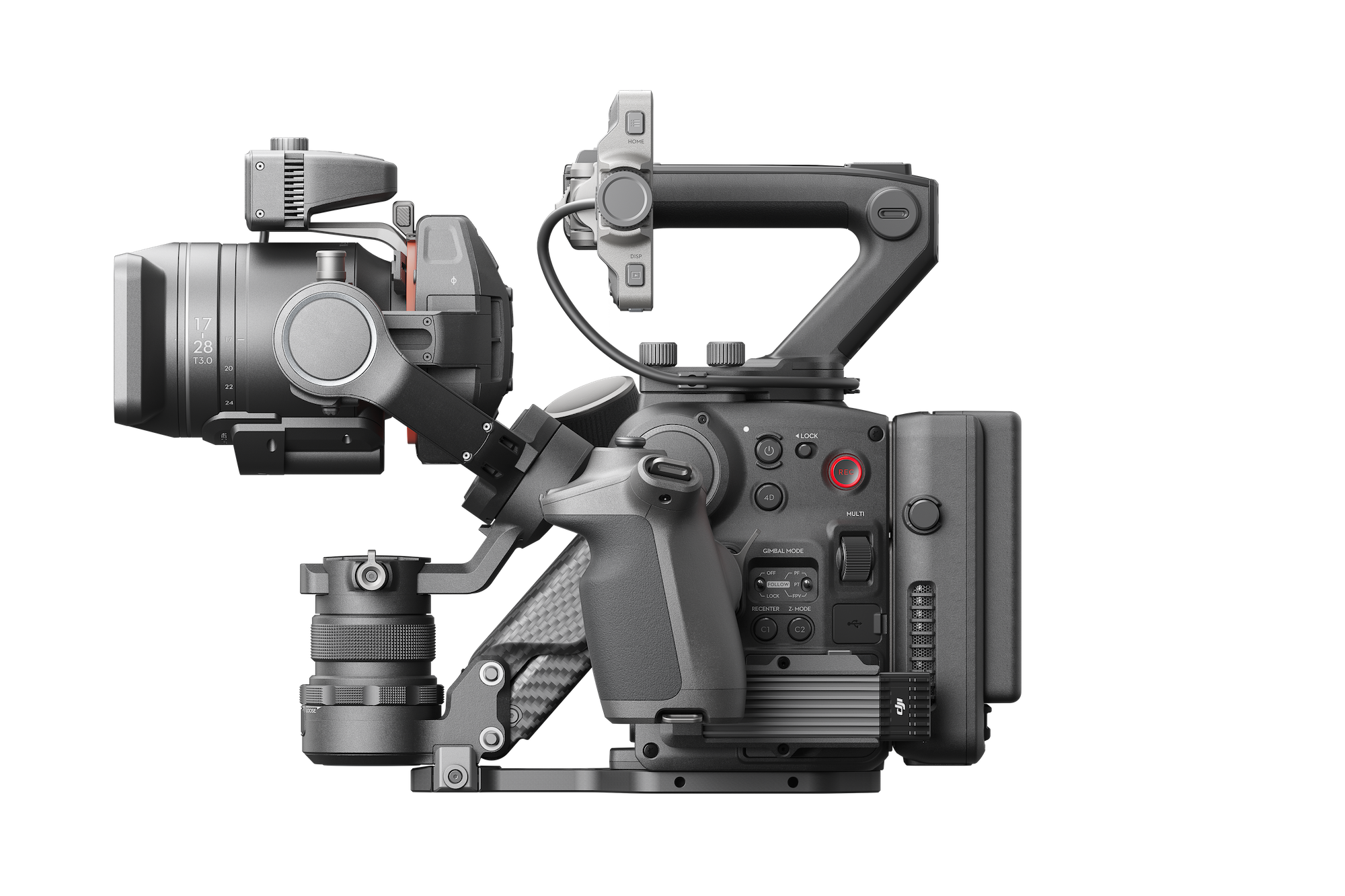

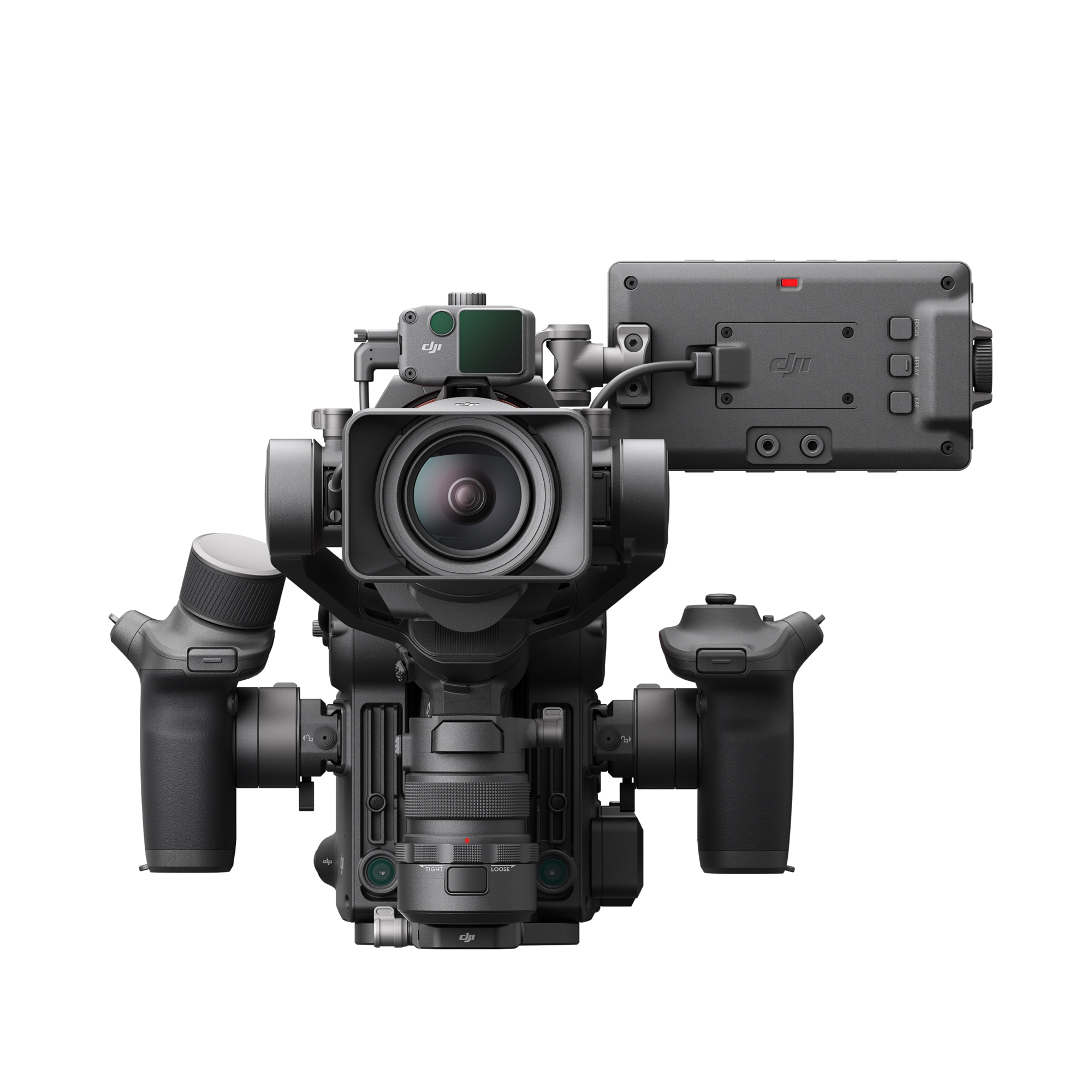

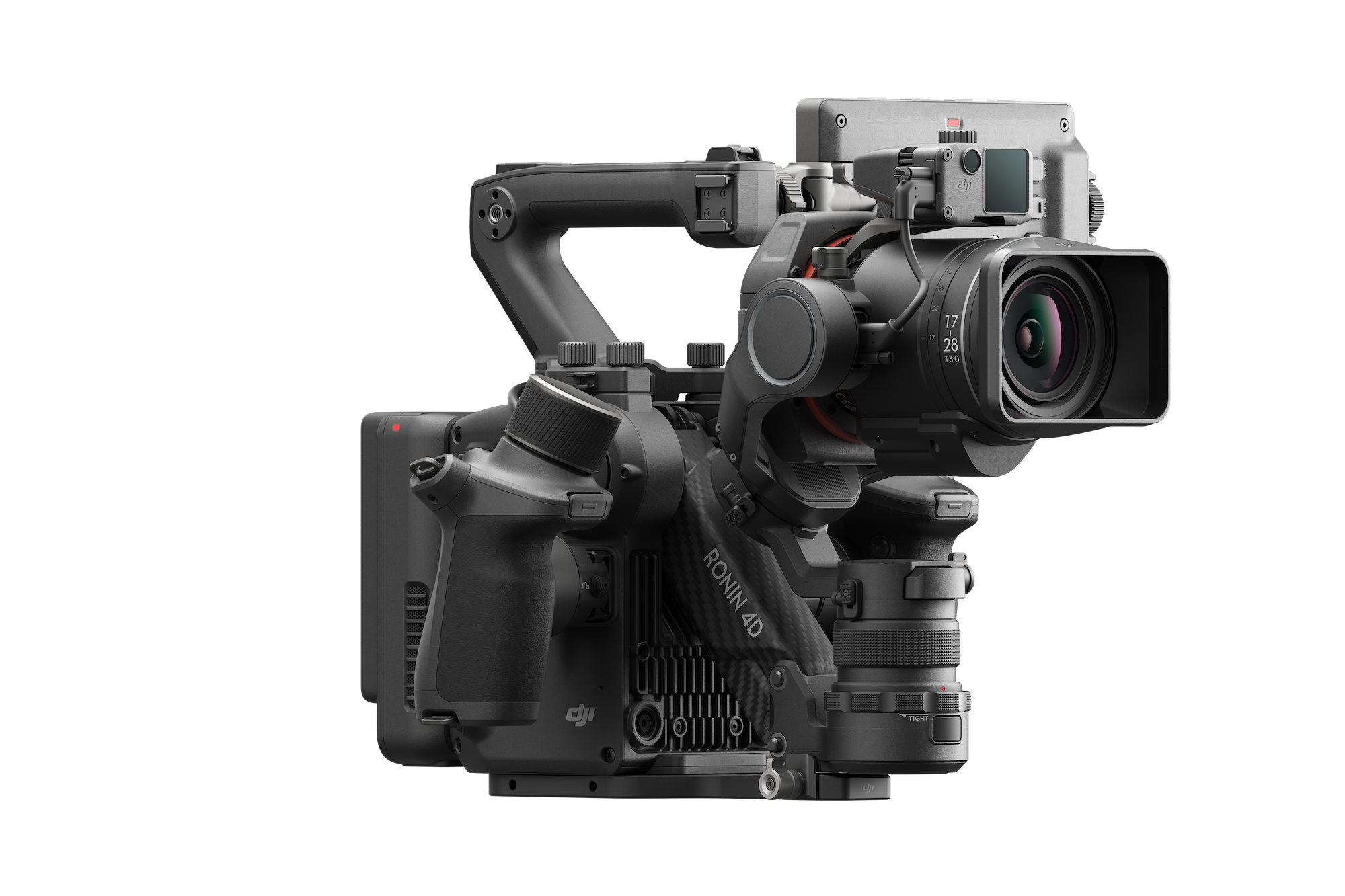

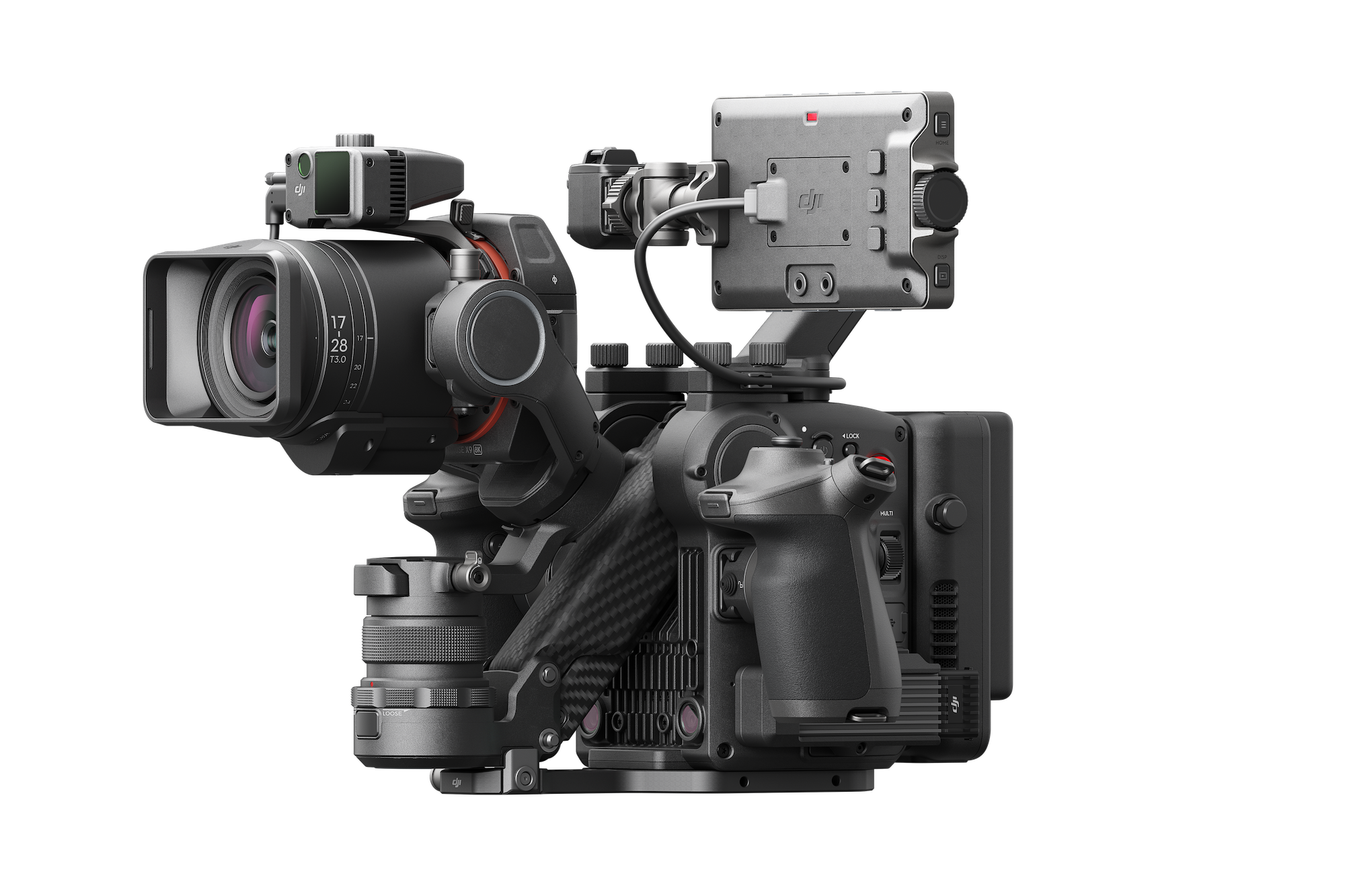

DthtJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens
Integrated Design
DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminum magnesium, its solid body integrates the imaging, stabilization, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting.
Cinematic Imaging System
Processing Power
Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a compact cinema camera. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, delivering multiple options for professional-level creation.
Resolution
DCI 8K (8192×4320)/60fps video retains every little detail, from rich foliage to inspiring architecture, skin texture to strands of hair, all with flawless quality. For those who need to output in 4K, recording in 8K offers unprecedented creative options with more flexibility for cropping, re-composing, and stabilizing videos in post.
High ISO
Zenmuse X9 supports dual native ISO. X9-8K defaults to EI 320/1600. With Dynamic Range Expansion on, X9-8K can support EI 800/4000, while X9-6K supports EI 800/5000, which records images with exquisite detail and minimal noise, even when filming an evening cityscape or beach, or a scene lit by dim candlelight.
Dynamic Range
With 14+ stops of dynamic range, Zenmuse X9 delivers natural transitions of highlights and shadows in complex lighting conditions such as backlit scenes and direct sunlight. These traditionally difficult scenes can now be captured easily and with confidence.
Color Science
DJI Cinema Color Science (DCCS) is a comprehensive system comprising the CineCore image processing platform, the DCCS color engine, D-Gamut color space, and D-Log curve, all culminating from years of imaging experience by DJI. It's designed to unlock the full potential of professional aerial and ground imaging equipment, offering creators more room for creativity and vividly recreating the kaleidoscopic colors seen by the human eye. In addition, X9 supports the industry-standard ACES workflow for effortless compatibility with the color systems of other cinema cameras.
Built-In 9-Stop ND Filters
X9 has 9-stop built-in high-quality ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to an internal motorized system. These filters were also designed to match and compliment the color science of Ronin 4D.
DL Prime Lenses
X9’s standard DL mount supports a set of compact full-frame prime lenses. The housings are made of lightweight, monocoque carbon fiber, so each lens weighs just 180 g.

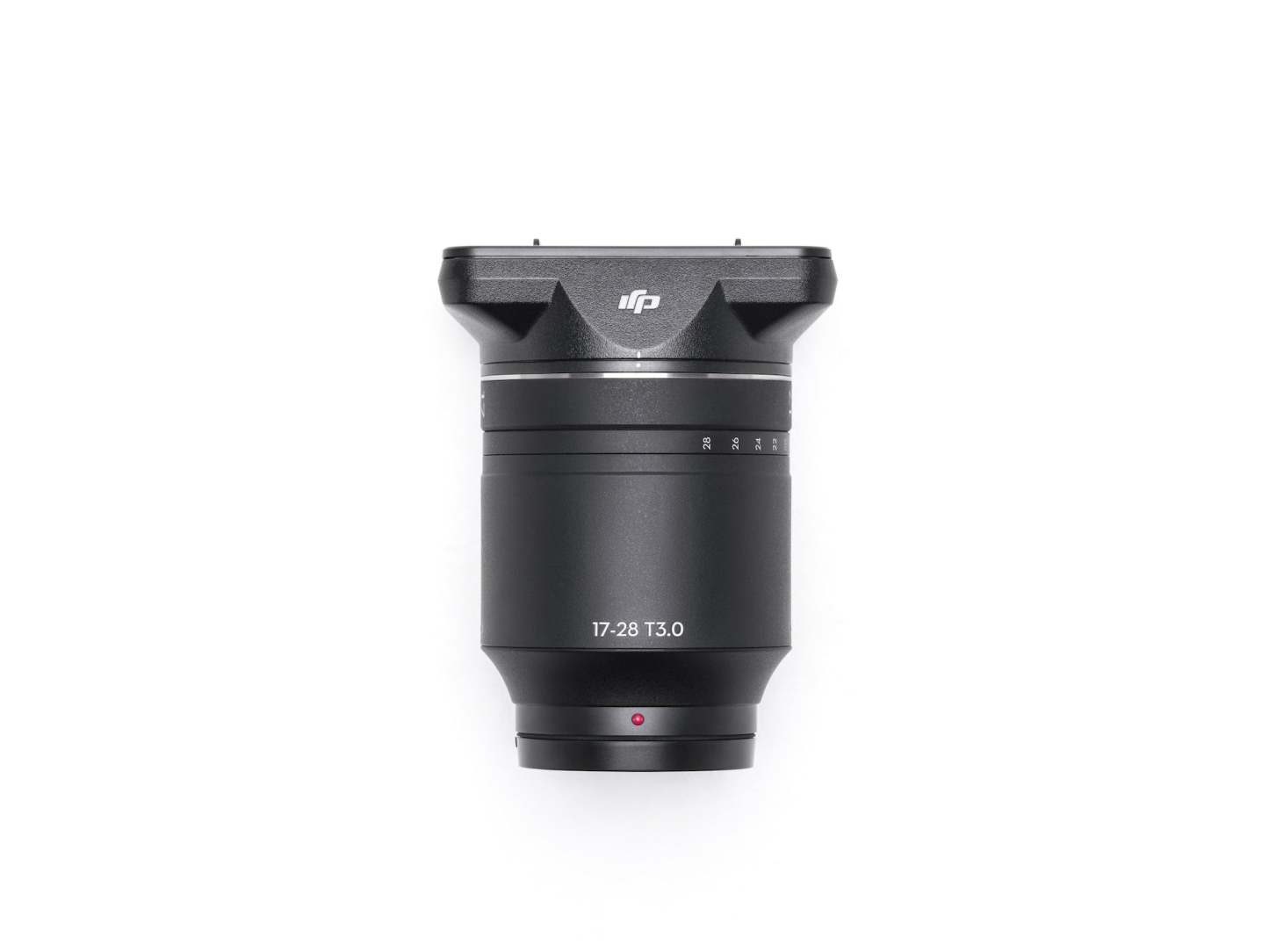

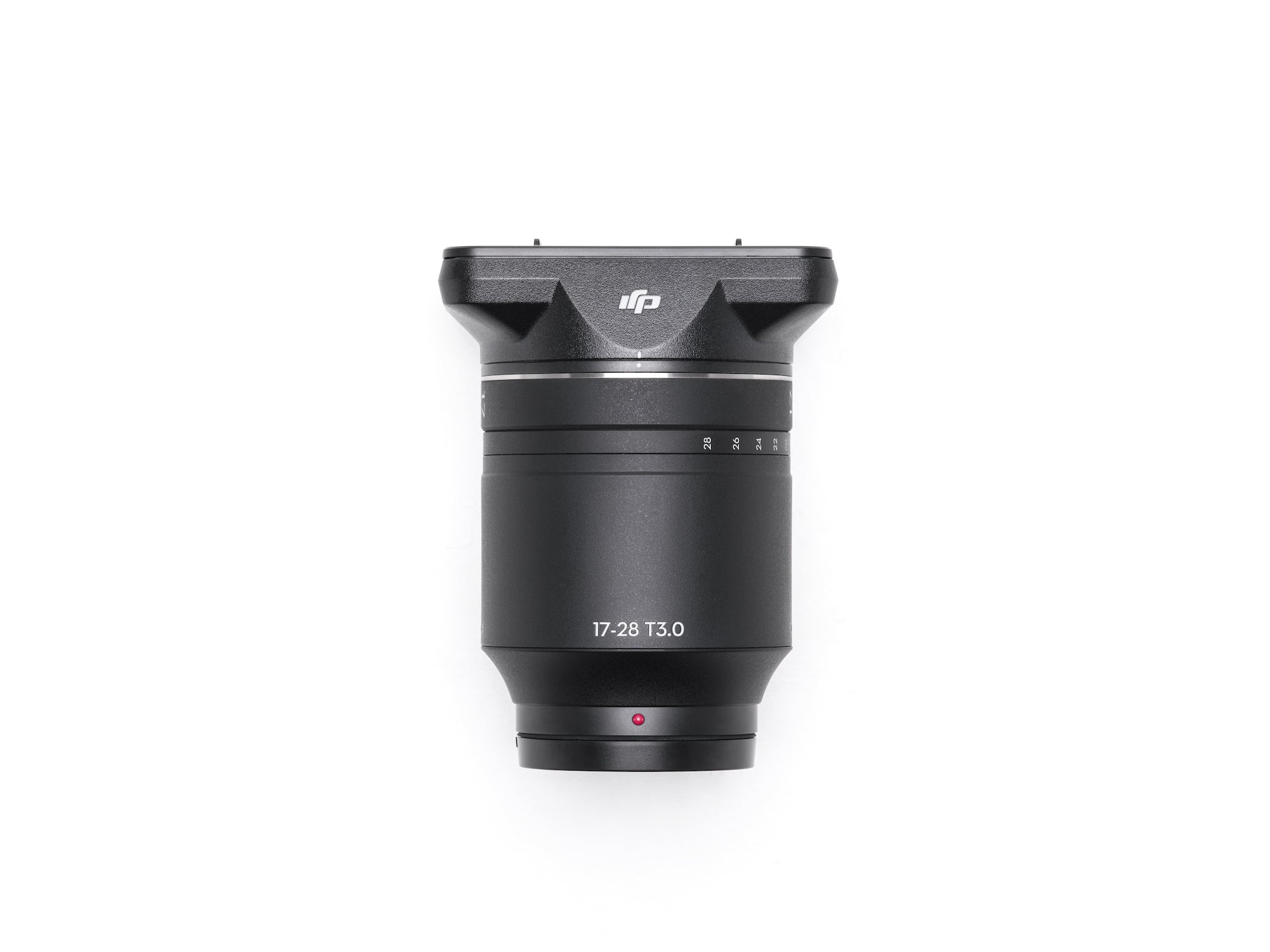

DL Zoom Lens
In addition to prime lenses, X9 is compatible with DJI’s first cinema zoom lens DL PZ 17-28 mm T3.0 ASPH, which covers ultra-wide to wide-angle focal lengths with a minimum object distance of 0.19 m, delivering ultra-high resolution from center to edge. The lens body is made of magnesium aluminum alloy and weighs only approximately 520 g, making it a perfect match for the X9 gimbal camera from size to weight.
Interchangeable Mounts
X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount as well as third-party mounts like Leica L, Leica M, Sony E, and ARRI PL (E-mount and PL-mount units are provided by third parties). Ultra-wide, f/0.95 large-aperture, power zoom, macro, and anamorphic lenses that are compatible with traditional cinema cameras also work on X9, providing flexible lens options.
Steady in Every Way
4-Axis Stabilization
DJI Ronin 4D adds a Z-Axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilization performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilization to a whole new level.

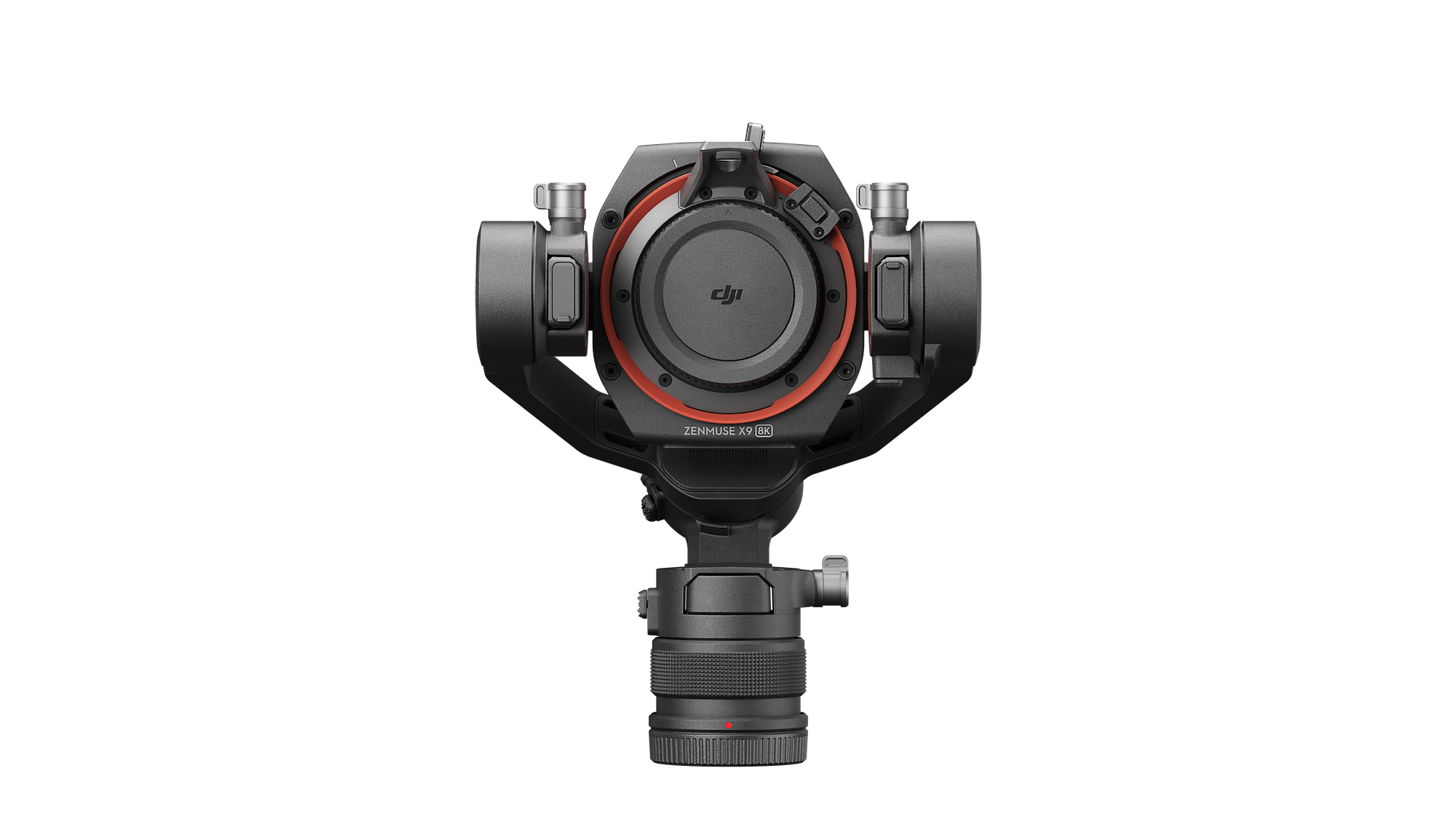

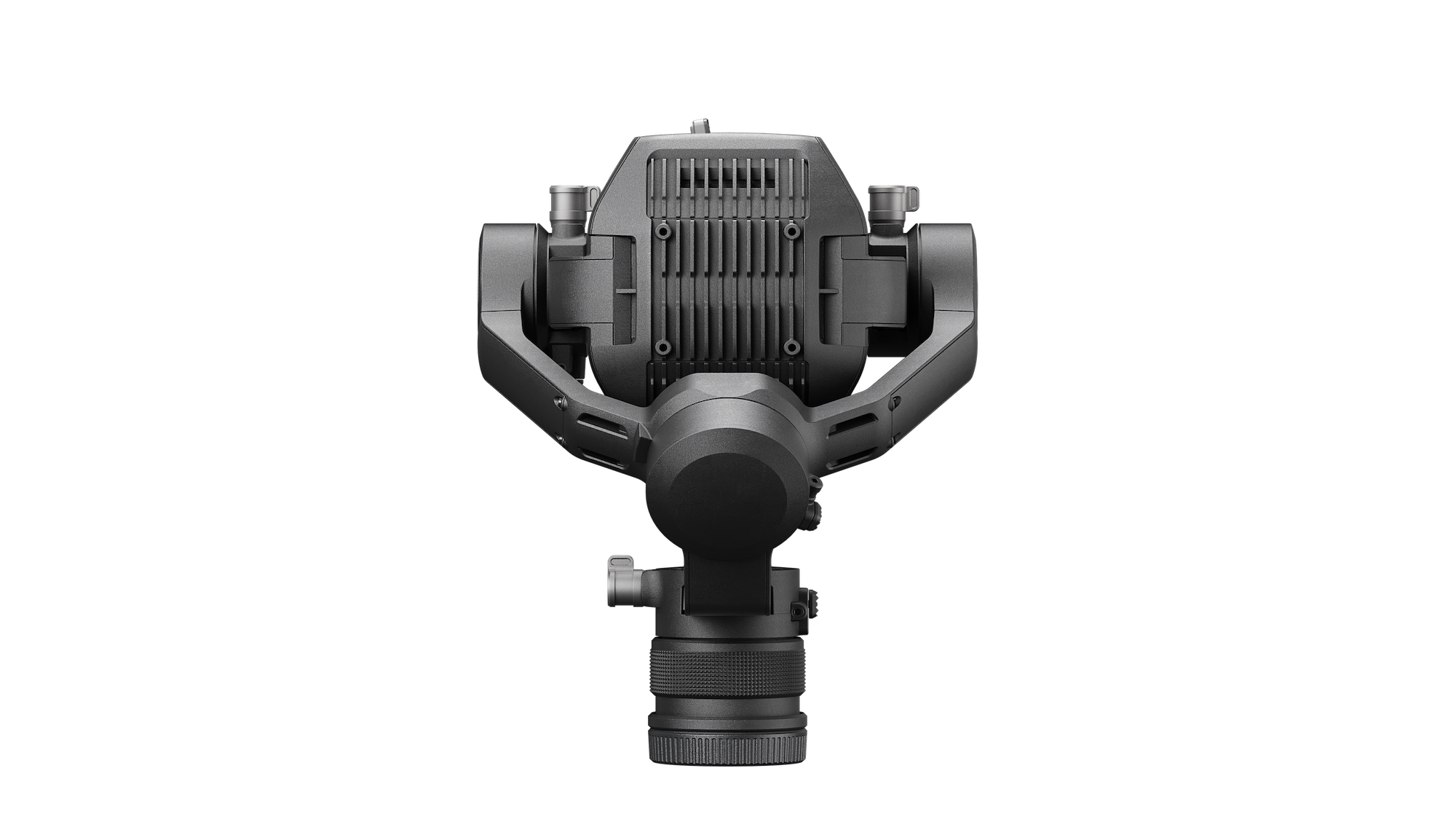

Integrated Gimbal Camera
Ronin 4D integrates the imaging and stabilization systems while keeping only the sensor and necessary optical components in the gimbal camera. The tilt axis of the gimbal uses dual symmetric motors, whereas both the pan axis and the roll axis are designed with an additional stiffness buffer.
LiDAR Focusing System
LiDAR Range Measurement
The LiDAR Range Finder can cast up to 43,200 ranging points within a 10-meter detection range. Compared with phase detection autofocus (PDAF), Ronin 4D’s LiDAR Focusing System can focus faster, without compromising the image quality or relying on the surface texture of the subject. This is especially useful in low-light environments and results in exceptional focusing capabilities compared to other cinema cameras.
Features:
- Highest Resolution: 8K/75fps (Full-frame 2.39:1) and 8K/60fps (Full-frame 17:9)
- Highest Frame Rate: 4K/120fps (Full-frame 17:9)
- Recording Codec: Apple ProRes RAW, Apple ProRes 422 HQ and H.264
- Native ISO: 320/1600 (Default) and 800/4000 (Dynamic Range Expansion on)
- Highest Dynamic Range: 14.7 stops

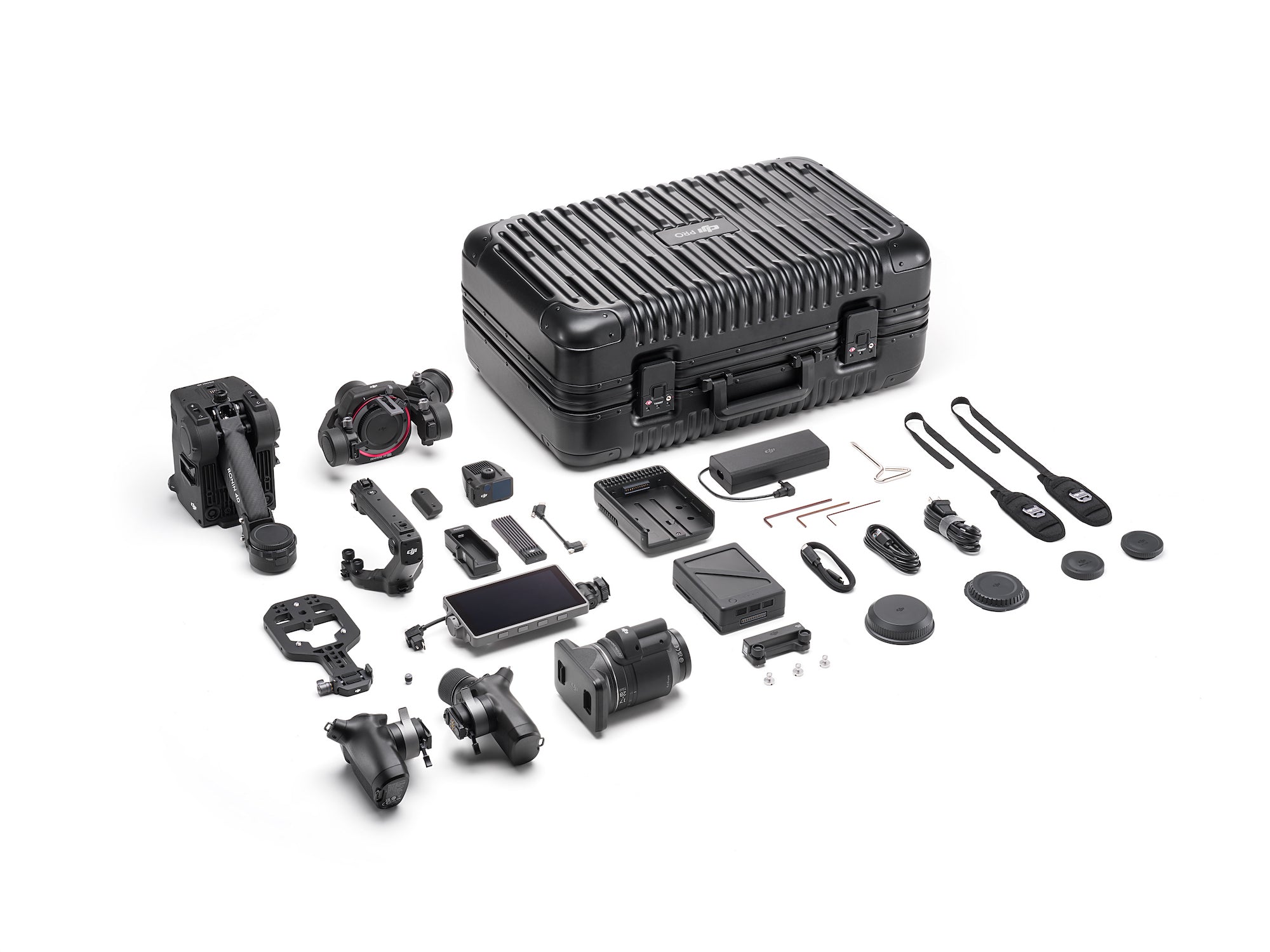

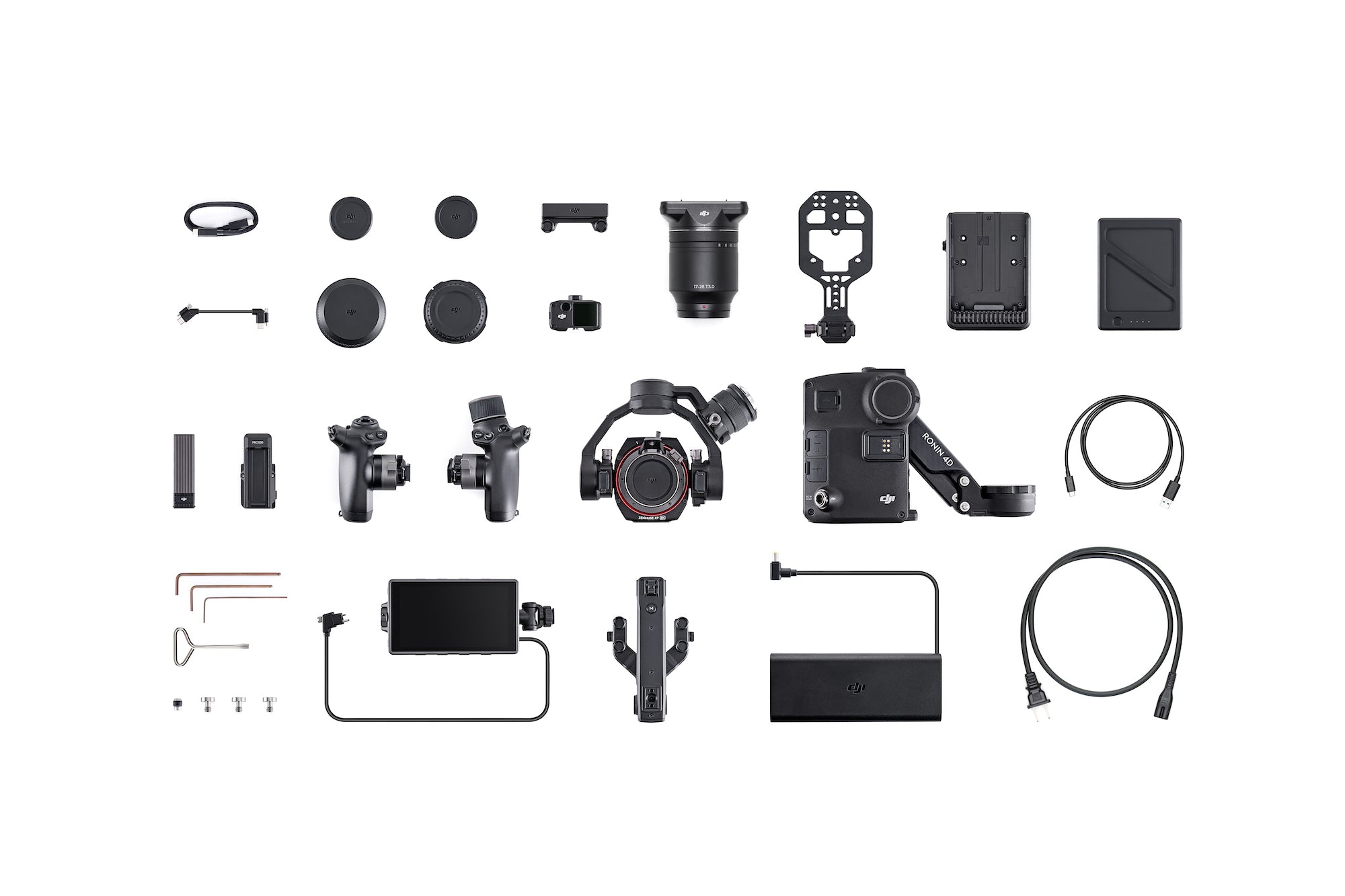

What's in The Box:
- Zenmuse X9-8K Gimbal Camera
- Main Body
- DJI DL PZ 17-28mm T3.0 ASPH Lens
- LiDAR Range Finder
- DL Mount
- Left Hand Grip
- Right Hand Grip
- Top Handle
- High-Bright Main Monitor
- PROSSD 1TB
- PROSSD Mount
- TB50 Battery Mount
- Power Adapter
- TB50 Charging Adapter
- 8x - AC Power Cable
- USB-A to USB-C Cable
- USB-C to USB-C Cable
- Base Plate
- Hand Grip Extended Control Sticks
- 3mm Ball-End Hex Key
- 2.5mm Ball-End Hex Key
- 1.5mm Ball-End Hex Key
- 3x - 10mm 1/4"-20 Screw
- Flat Head Screwdriver
- X9 Gimbal Base Cap
- DX Mount Body Cap
- DX Mount Lens Cap
- Ronin 4D Gimbal Base Cap
- TB50 Intelligent Battery
- LiDAR Range Finder/Focus Motor Cable
- Left Hand Grip Strap
- Right Hand Grip Strap
- Ronin 4D Carrying Case
- X9 Counterweight (106 g)
- DJI Ronin 4D RAW License Key
